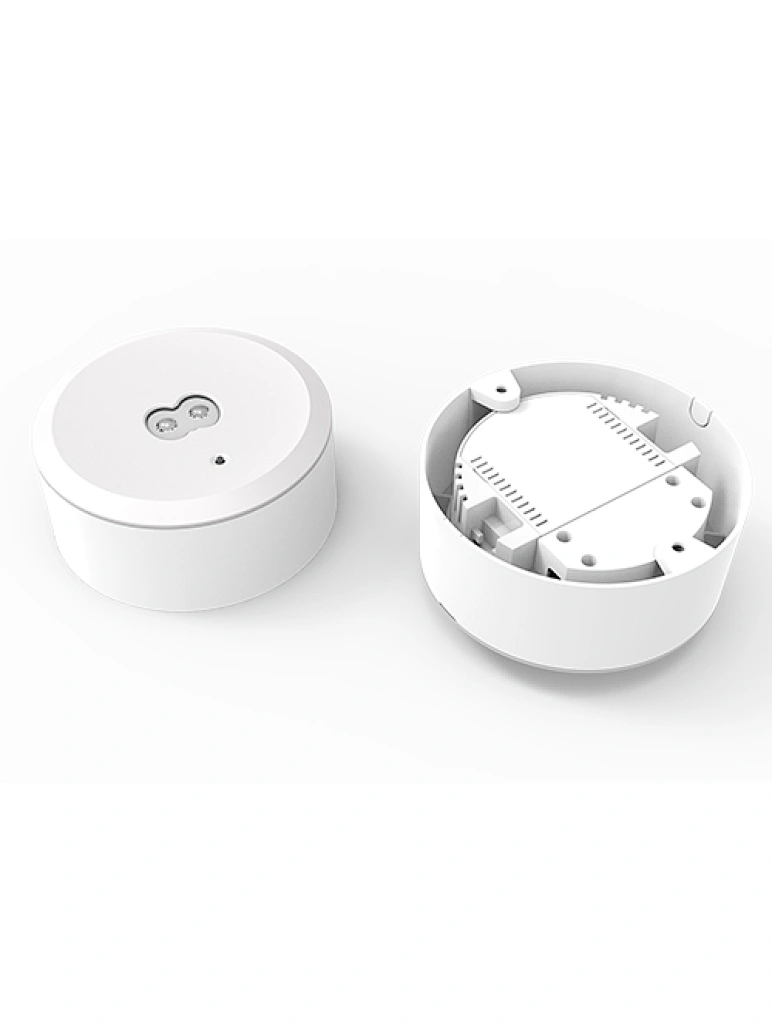

LED Round Emergency Downlight
KJED-P-L1.6-2
Features:
Non-maintained mode;
IP40 protection;
PC body and PC diffuser;
Test switch available;
Recess mounted and surface mounted optional;
LiFePo4 and Ni-Cd battery optional;
Duration more than 3hours.
Non-maintained mode;
IP40 protection;
PC body and PC diffuser;
Test switch available;
Recess mounted and surface mounted optional;
LiFePo4 and Ni-Cd battery optional;
Duration more than 3hours.
Quantity
recessed installation of downlight emergency with unique appearance design, and the installation aperture and surface size are the same as those of normal downlight as recessed emergency downlight. No special cutting diameter of this recessed emergency downlight is required.
After installation, this round recessed emergency downlight is coordinated with the ordinary downlight and does not affect the beauty and unity of the overall lighting decoration with downlight emergency. Also the surface mounted of this downlight emergency can be available with a surface frame for this recessed emergency downlight. Two different emergency parameters of this downlight emergency are: 2.5w/3h and 1.6w/2h can be choosen.
After installation, this round recessed emergency downlight is coordinated with the ordinary downlight and does not affect the beauty and unity of the overall lighting decoration with downlight emergency. Also the surface mounted of this downlight emergency can be available with a surface frame for this recessed emergency downlight. Two different emergency parameters of this downlight emergency are: 2.5w/3h and 1.6w/2h can be choosen.
| Input Voltage/ Frequency | 220-240VAC 50/60Hz |
| Input Wattage | 5W |
| Viewing Distance | 24M |
| Maintained and Non-maintained | M&NM |
| Selftest | Optional |
| Test switch | Yes |
| Emergency Power Output | 2.5W |
| Emergency Lumen Output | 250Lm |
| Emergency Duration | >3Hours |
| Battery pack | LiFePO4 / Ni-Cd Optional |
| Guarantee | 5Years |
| IP Rating | IP40 |
| Size | φ140*35 mm |
| Installation type | Recess Mounted |
