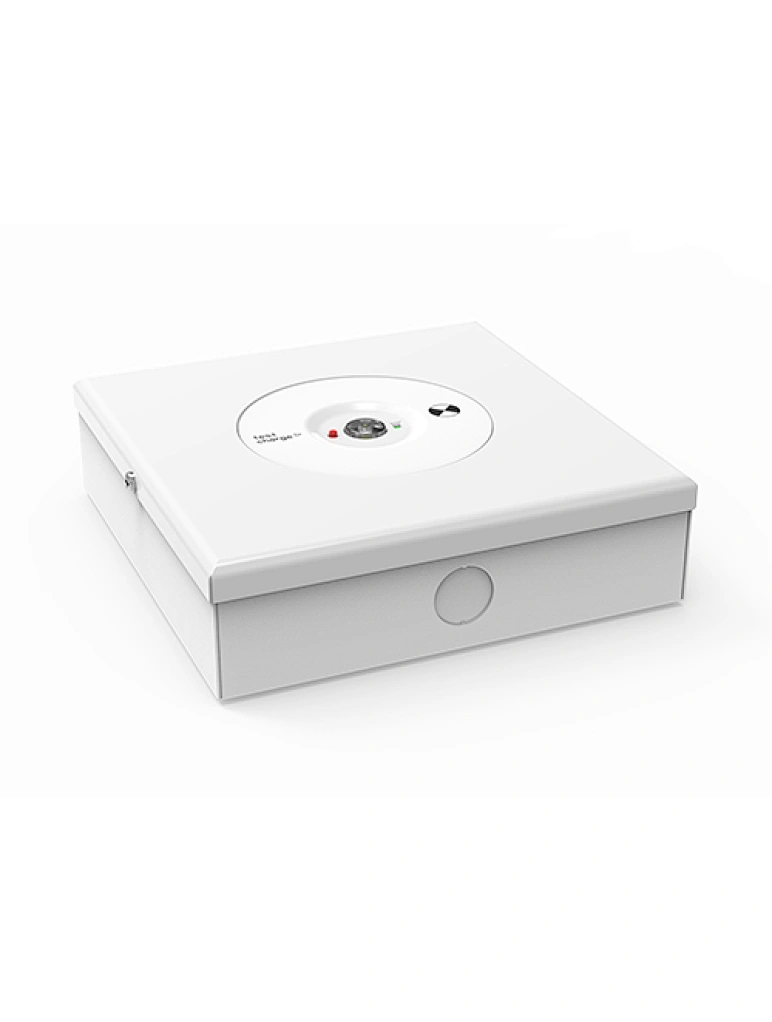

LED Surface Mounted Square Emergency Spot
KSED-PT-L-3
Features:
Maintained and Non-maintained mode optional;
IP40 protection;
PC body and PC cover;
Test switch available;
Ceiling mounted;
White and black optional;
LiFePo4 and Ni-Cd battery optional;
Duration more than 3hours.
Maintained and Non-maintained mode optional;
IP40 protection;
PC body and PC cover;
Test switch available;
Ceiling mounted;
White and black optional;
LiFePo4 and Ni-Cd battery optional;
Duration more than 3hours.
Quantity
LED Emergency Spot can be available in white and black. This LED Emergency Spot can be applied to the top lighting area of stores and shopping malls, as well as the display area of special commodities where emergency lighting surface mounted is needed.
This emergency lighting surface mounted is suitable for the installation area of ordinary LED Emergency Spot. The shell of emergency lighting surface mounted shall be embedded in advance during construction.




This emergency lighting surface mounted is suitable for the installation area of ordinary LED Emergency Spot. The shell of emergency lighting surface mounted shall be embedded in advance during construction.


Input Voltage/ Frequency | 220-240VAC 50/60Hz |
Input Wattage | 3W |
Lumen Output | 300Lm |
Viewing Distance | 24M |
Maintained and Non-maintained | M&NM |
Selftest | Optional |
Test switch | Yes |
Emergency Power Output | 2.5W |
Emergency Lumen Output | 300Lm |
Emergency Duration | >3Hours |
Battery pack | LiFePO4 / Ni-Cd optional |
Guarantee | 5Years |
IP Rating | IP40 |

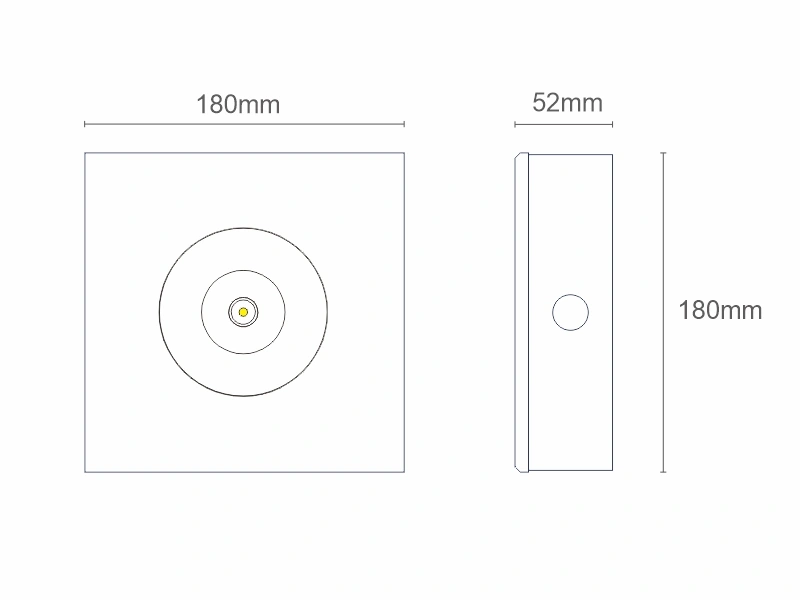

Size | 180*180*52 mm |
Installation type | Ceiling Mounted |
