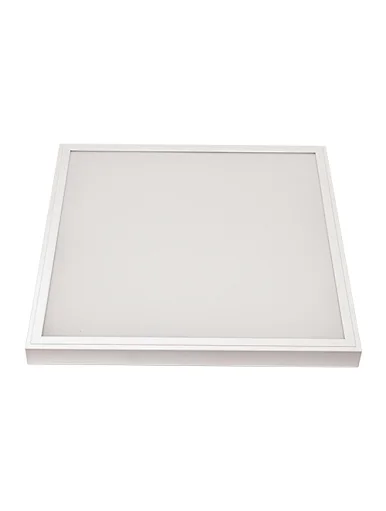

Surface LED back light Panel with Emergency

Surface LED back light Panel with Emergency
EPSB-EM
Quantity
The surface mounted emergency panel light adopts the back direct transmission luminous design, and the prism or opal lampshade of the  emergency led panel light can effectively prevent glare and ensure high enough luminous flux and luminous effect of this emergency led panel light. The emergency panel light adopts built-in emergency power supply and battery, without special installation requirements and use space for this emergency led panel light. The emergency panel light can be widely used in classrooms, hospitals, offices and other places.



EPSB-3060-EMEPSB-6060-EMEPSB-30120-EM
Input Voltage(AC)220-240 220-240 220-240
Frequency(Hz)50/6050/6050/60
Power(W)204040
Luminous Flux(Lm)180036003600
Luminous Efficiency(Lm/W)909090
Emergency Power(W)222
Emergency Luminous220220220
Emergency duration3 hours3 hours3 hours
CCT(K)3000-65003000-65003000-6500

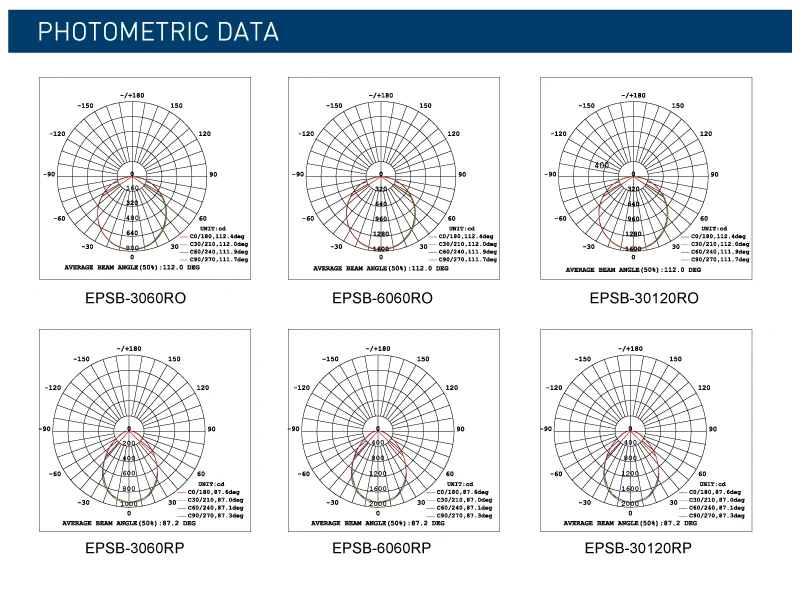

Beam Angle120° 120° 120°
CRI>80>80>80
Dimmablenon-dimmablenon-dimmablenon-dimmable
Surronding Temperature-20°C~40°C-20°C~40°C-20°C~40°C
Energy Efficiency A+A+A+
IP RateIP20IP20IP20

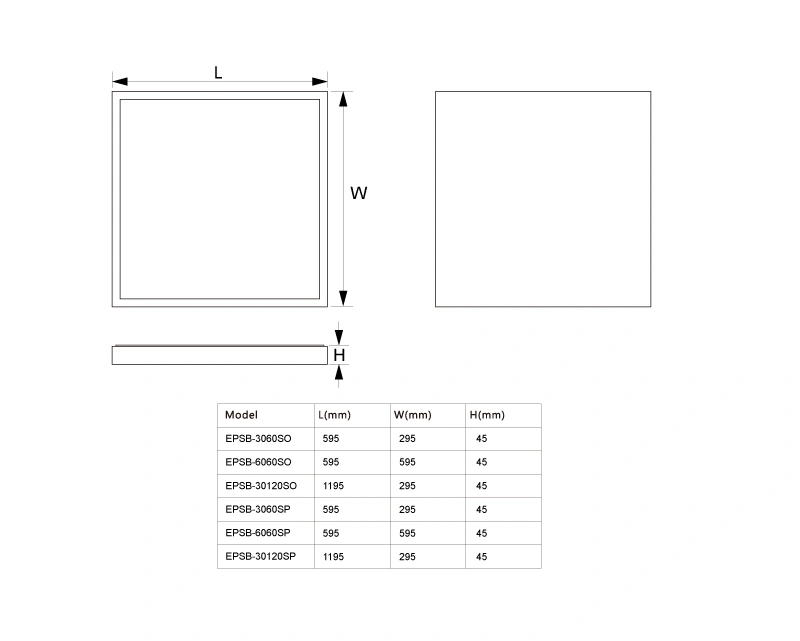

Size(mm)295*595*45595*595*45295*1195*45
N.W.(Kg)1.533
CertificationCE/ RoHSCE/ RoHSCE/ RoHS
Cover DesignOpal/PrismOpal/PrismOpal/Prism
Adjustable angleNoNoNo
InstallationSurface mountSurface mountSurface mount
Gurantee3 Years /5 Years3 Years /5 Years3 Years /5 Years
